PM01-CPB PEELMASTER

01 / features

TWO 3-AXIS ROBOTS

single system to pick, place, and flip PCB panels, allowing an A/B/A/B.. workflow



MULTI-BATCH MODE

assignment of multiple jobs on a single rack possible



RECIPE FUNCTION

save selected settings as recipes for easy reuse at a later point in time

FORMAT RECOGNITION & HANDLING

automatic panel size and panel format recognition followed by proper handling

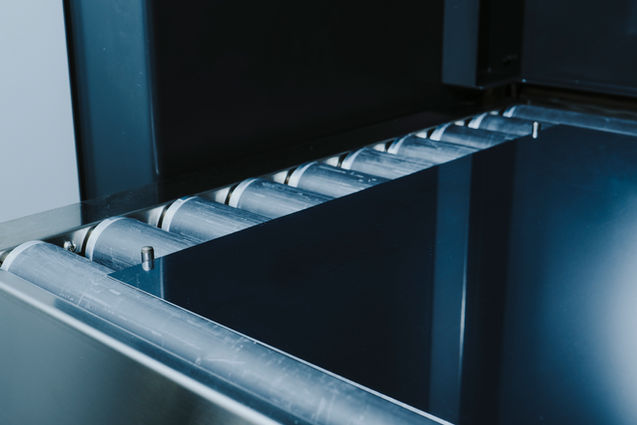

VARIOUS LAYOUTS

conveyor either in-line or 90° left/right to fit customers' needs



EASY ACCESS

for maintenance on LDI, AOI or INKJET machine

EDTA652: EXTERNAL DESKTOP AUTOMATION

The EDTA652 is the fastest in-line external desktop automation for loading & unloading LDI's. AOI's, and INKJET's. It can also function as a stand-alone solution when combined with two SRV652 or SBT602 slot rack loader or unloaders. The EDTA652 can be directly linked to a MES or ERP system, guaranteeing traceability per PCB.

02 / specifications

FLOOR SPACE

750 (flow dir.) x 1200mm



PRODUCTIVITY RATE

up to 10 seconds/side



CLEANROOM SUITABLE

sterile operation


POWER CONSUMPTION

1100 watts



PANEL SIZE

L300xW300 - L635xW635mm (extension available)

03 / CONNECTIVITY

SECS/GEM
